Place of Origin:
Jiangxi, China
Brand Name:
ORK
Certification:
REACH / ROHS / ISO9001 / IATF / SGS / FDA
Model Number:
AS568 & PG Standard O-Rings

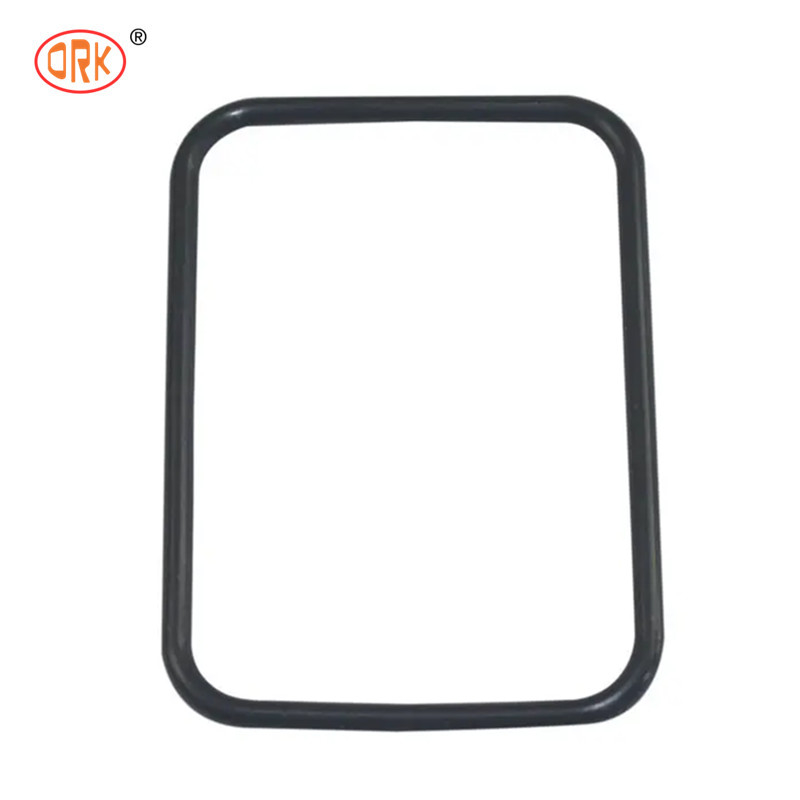

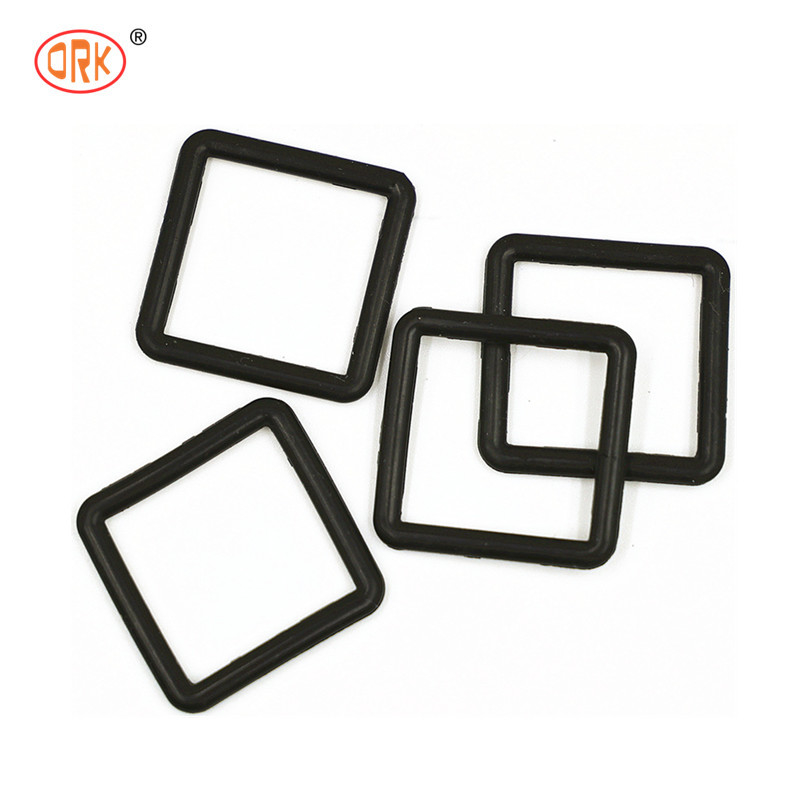

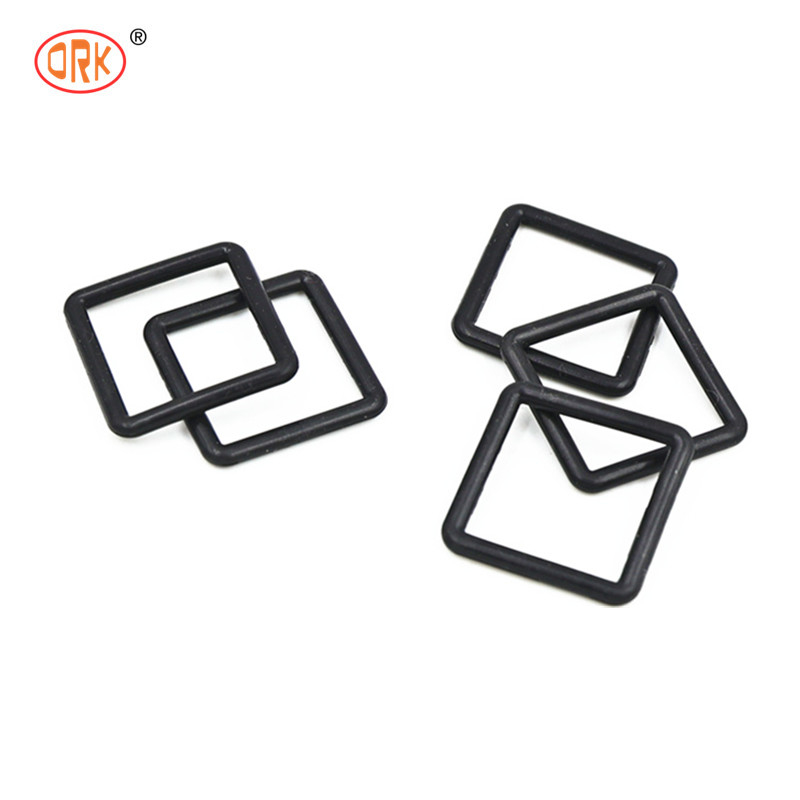

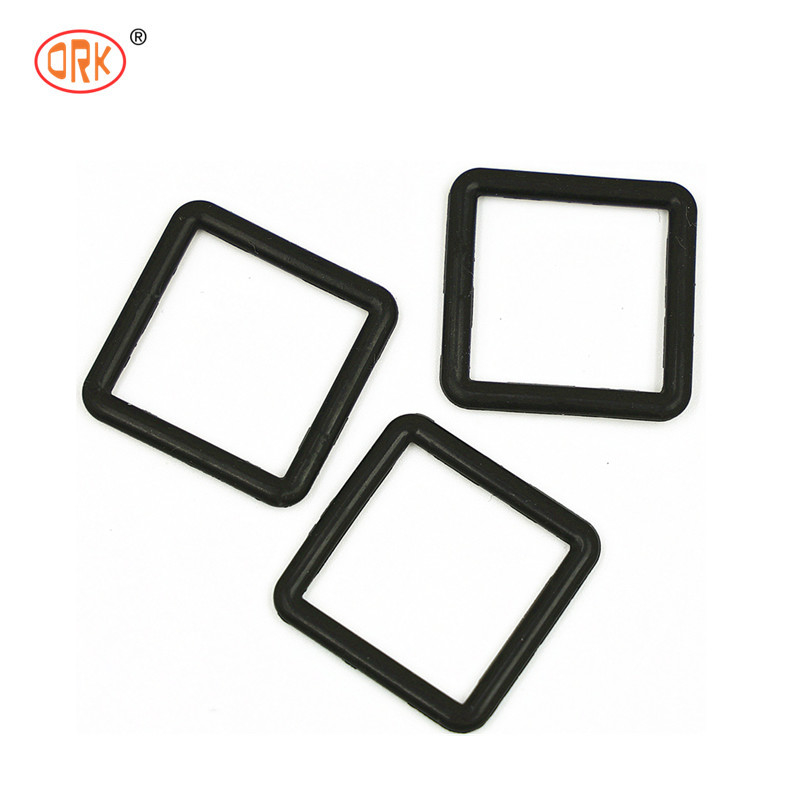

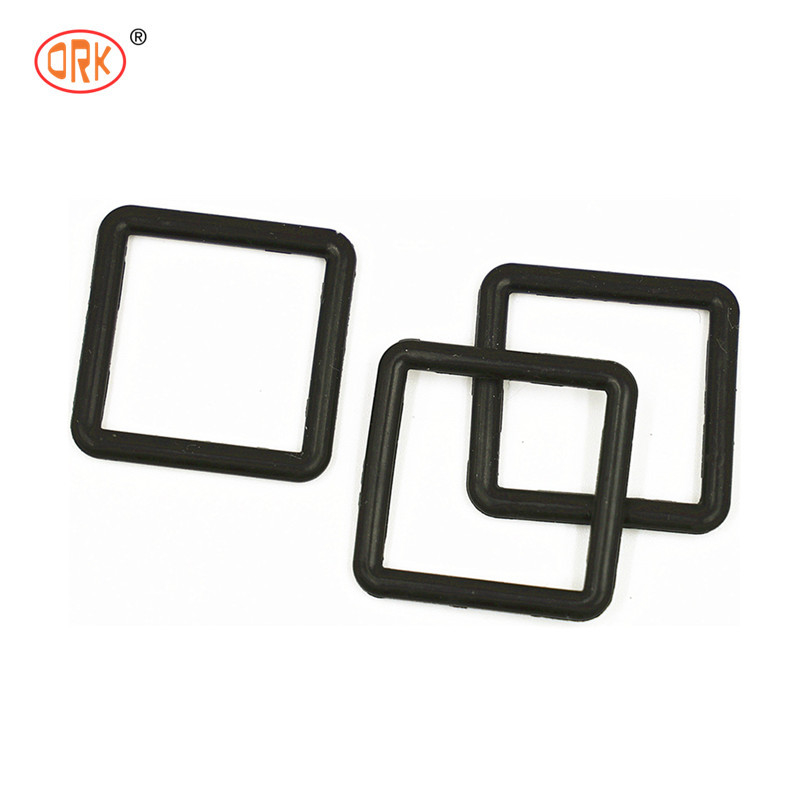

Square Rubber Oil Seal for Customer's Specific Applications AEM/EPDM/FKM/NBR Elastomer Material
| name | Square Rubber Oil Seal |
| material | NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM ,SBR , FLS ,IIR |
| application | Used to protect or cover through holes. Help eliminate sharp edges so your wires are protected. Add aesthetic value to your application. Mechanically protects against the sharp edges of drilled or punched holes for wiring, cable, tubing, piping, hoses, air lines, rope and more. Used in appliances, motors, tools, cars, trucks, trailers, electronic equipment, toys, bikes, RVs, boats, pumps, furniture and more. |
| characteristics | 1). resistant to high and low temperature; 2). moisture and chemicals; 3). durable in liquid material; 4). ozone, oil, grease resistance; 5). excellent flexibility and wearability; 6). high strength, flame resistant, etc. |
| packing | in standard export packing |
| colors | different colors accept |
| hardness | shore30~90(A) |
| Notice | OEM&ODM samples or 2D&3D format drawing welcom! |
| Material | FKM/FPM |
| Advantage | 1,Excellent High Temperature Resistance |
| 2. Excellent Abrasion-Resistance | |
| 3,Excellent Oil Resistance | |
| 4.Excellent Weathering Resistance | |
| 5.Excellent Ozone Resistance | |
| 6.Good Water Resistance | |
| Disadvantage | 1.Poor Low Temperature Resistance |
| 2.Poor Oxygenated-Solvent Resistance | |
| Temperature | -20℃~250℃ , -40℃~250℃(special formula) |
| Application | 1.For Auto |
| 2.For Aerospace | |
| 3.For Electronic Products |
*Service Temperature
For general type FKM the service temperature is better limited to approximately from -26 C to 232 C in static
applications, though the service temperature can arrive to 275 C at short time In dynamic applications, it is
suitable between -15 C and 200 C.
*Application
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is
usually applied in automotive, chemical processing, aerospace and many other industries.
We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM ,SBR , FLS , etc...
What's Each Rubber's Typical Features ?
NBR Rubber Features:
Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and vegetable
oil.
Nitrile rubber also offers strong resistance to heat aging - often a key advantage over natural rubber.
Nitrile rubber performs well in carburetor and fuel pump diaphragms, aircraft hoses, seals and gaskets as well
as oil-lined tubing. Due to its versatility, nitrile is used in applications involving not only oil and fuel resistance,
but those applications requiring resistance to heat, abrasion, water, and gas permeability.
EPDM Rubber Features:
EPDM rubber is a high density rubber primarily used for outdoor applications. It has dynamic and mechanical
properties between natural rubber and synthetic rubber.
Do not use EPDM if continual contact with petroleum based products is required.
Not recommended for usage in food applications or those that are exposed to aromatic hydrocarbons.
HNBR Rubber Features:
Hydrogenated Nitrile Butadiene Rubber (HNBR), also known as Highly SaturatedNitrile (HSN), is special class
of nitrile rubber (NBR) that has been hydrogenated to increase saturation of the butadiene segment of the
carbon polymer backbone. Subsequent improvements to the material properties, over that of a nitrile rubber
(NBR), include greater thermal stability, broader chemical resistance, and greater tensile strength.
HNBR is classified by ASTM as a DH-type polymer. This classification indicates 150ºC service temperature as
well as less than 30% swell in IRM 903 oil. HNBR can be formulated to meet application temperatures ranging
between -50°C and 165ºC.
SBR Rubber Features:
1.Main materials: Styrene-butadiene rubber (SBR), a general-purpose synthetic rubber,produced from a
copolymer of styrene and butadiene. Exceeding all other synthetic rubbers in consumption, SBR is used
in great quantities in automobile and truck tires, generally as an abrasion-resistant replacement for natural
rubber (produced from polyisoprene).
2.Available place: They are widely used in automobile, electrical appliances, building vibration isolation and
other industry.For example, air blower, water pump, instrument, measuring of ships and so on.
3.Main performance: SBR has similar chemical and physical properties to natural rubber, with generally better
abrasion resistance,outstanding strength,good creep and stress relaxation resistance and low cost,etc. It is not
recommended to use SBR in applications that involve ozone, strong acids, oils, greases, fats and most hydrocarbons.
Neoprene Rubber Features:
Neoprene Rubber, also known as neoprene polychloroprene, is an extremely versatile synthetic rubber with
more than 75 years of proven performance.
In the automotive world, neoprene is used for many under-the-hood and underbody parts that require a
reasonably priced,mid-performance polymer with a good all-around balance of performance properties.
Natural Rubber Features:
Natural rubber was originally derived from latex found in the sap of rubber trees. The purified form of natural
rubber can also be produced synthetically. Natural rubber is an ideal polymer for dynamic or static engineering
applications.
Caution: Natural rubber is not recommended for applications where the rubber part will be exposed to ozone,
oils, or solvents.
PU/Polyurethane Rubber Features:
Polyurethane is an organic polymer. Polyurethanes are formed by reacting a polyol (an alcohol with more than
two reactive hydroxyl groups per molecule) with a diisocyanate or a polymeric isocyanate in the presence of
suitable catalysts and additives.
Polyurethane is a widely used compound due to its superior strength, tear and abrasion resistance. Polyurethane
also provides excellent permeation resistance.
Features:
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
For color , we can make as customers' requirements .Below table is the colorful o rings we made.If you
need colored o rings , you can give me pantone number .
We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always
satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all
our new customers to become long-term customers.
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, Paypal is also ok
