Place of Origin:
Jiangxi, China
Brand Name:
ORK
Certification:
REACH / ROHS / ISO9001 / IATF / SGS / FDA
Model Number:
AS568 & PG Standard O-Rings

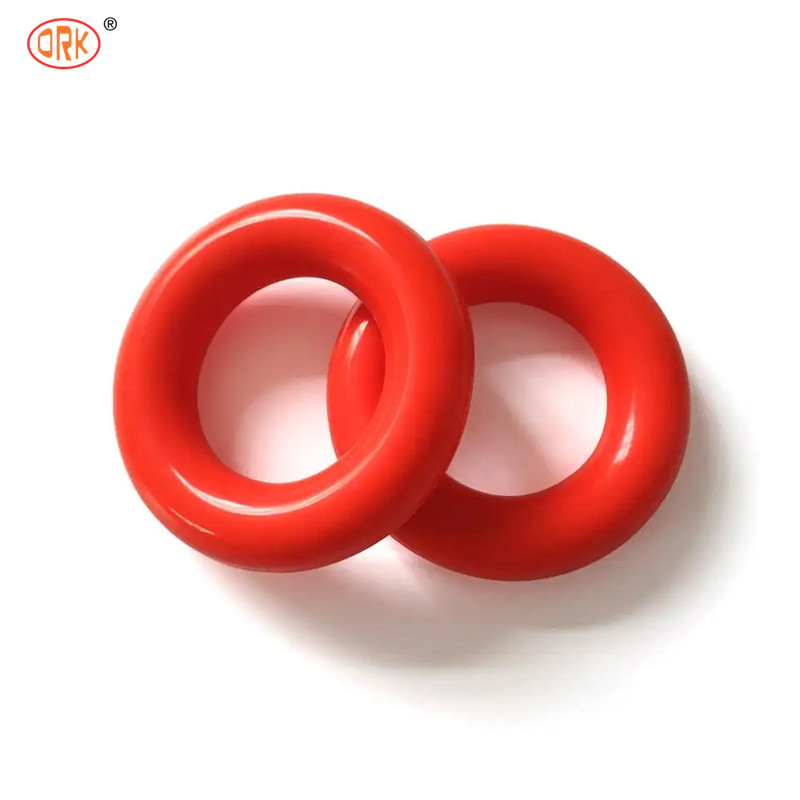

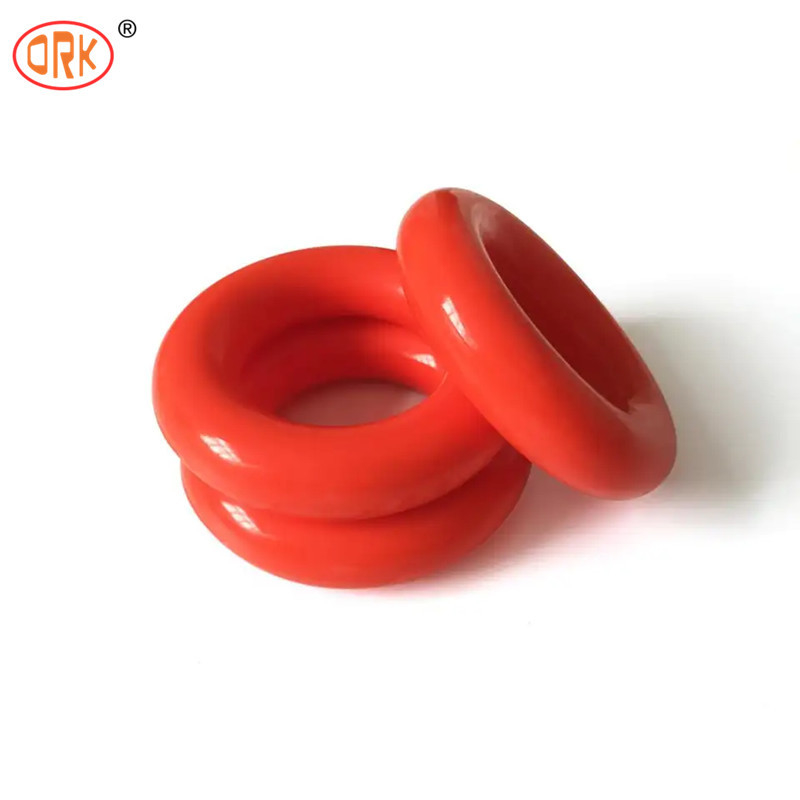

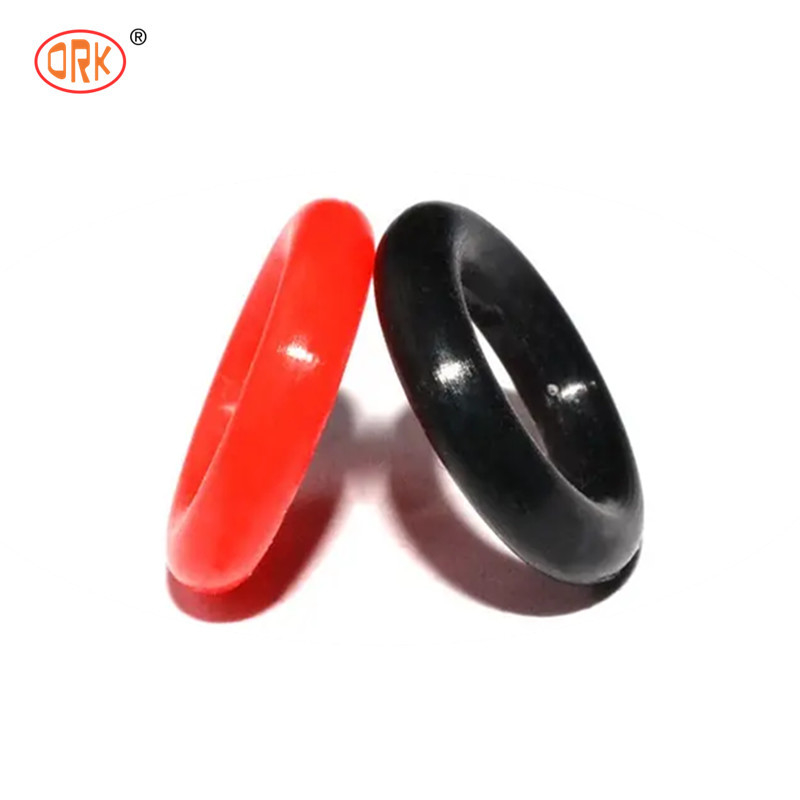

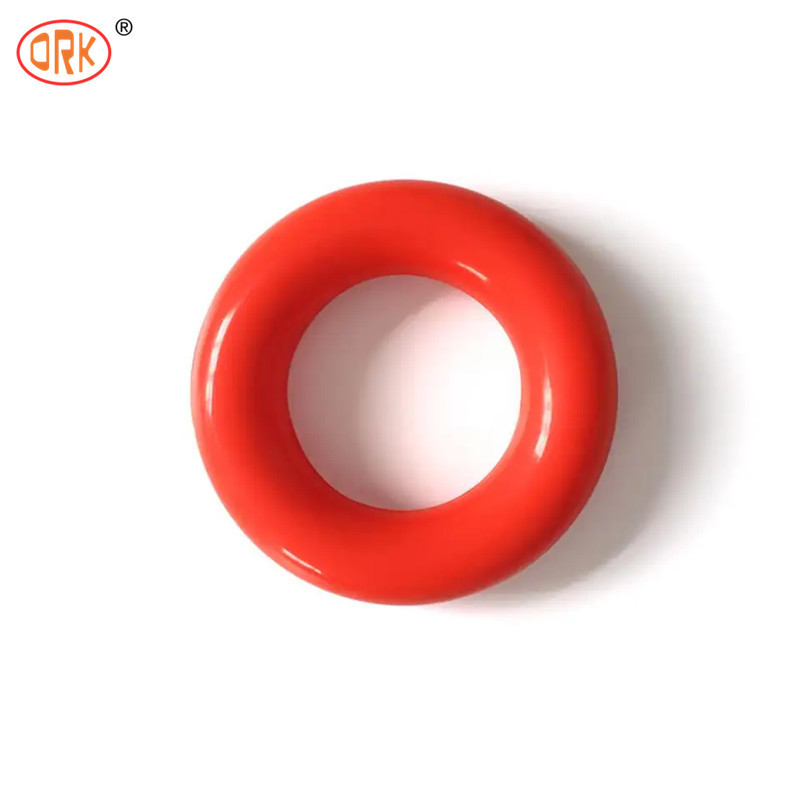

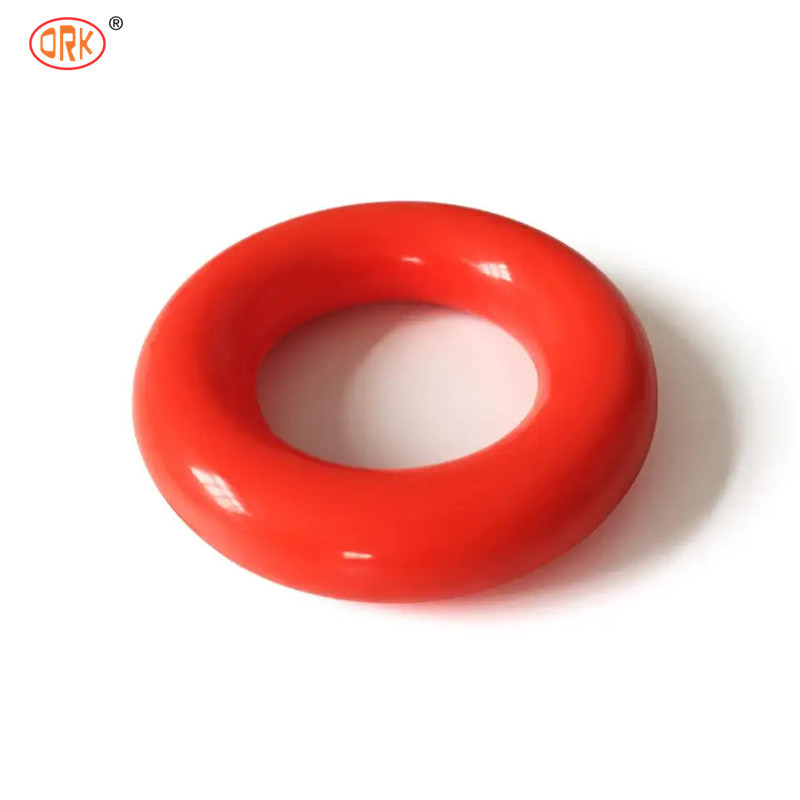

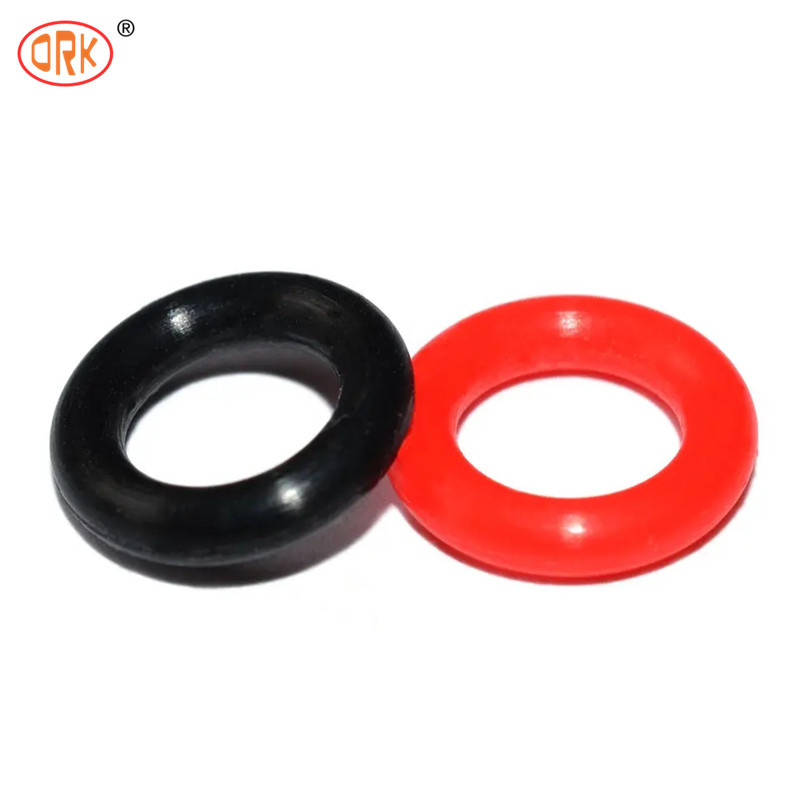

Customer-Driven ORK Double PTFE Coating on FKM O-Ring Material Seals for AEM and NBR Seals
The standard of O-rings mainly includes: national standard GB1235-76, national standard GB3452.1-92;
Japanese standard PTYPE, GTYPE, STYPE, SS/VTYPE, FTYPE; American standard AS568, British standard
series; European standard series
O-ring technical requirements include appearance requirements, dimensional requirements, and material physical
performance requirements.
Appearance requirements in line with GB/T3452.2-2007
Material requirements are in line with HG/T2579-2008
Dimensional requirements are in line with GB/T3452.1-2005
Function of the rubber o ring
O-Rings are used in sanitary pipeline systems for the Auto, Machinery, Food, Dairy, Beverage,
Pharmaceutical and Bio-Tech industries. Rubber Fab offers a full line of AS568 dash numbers,
metric, and specialty o-ring sizes that are manufactured using EPDM, NBR, FKM Fluoroelastomer,
Buna-N, PTFE, Silicone and so on.
The o-rings used in cylinder, pump, railcars, truck, washing machine, instrument and meter,
mine equipment, pipeline, household appliances, automobile, steamboat, industrial electrical
equipment, building door& window, construction machinery, construction bridges and tunnel.
1. mechanical sealing, pressure vessel ,gas compressor, reaction vessel ,heat
exchanger, boiler, filter and so on.
2.it can be used for all kinds of electronic products in a wide range ,such as camera, mobile
phone, printer, computer.
3. Used for automobile windows and doors, etc...
4. Silk screen printing, spray coating, laser etching, back-lighted, hard/epoxy coating keypads.
| Product name | O-RING |
| Material | NR, NBR, EPDM, SBR, VITON, CR, SILICONE, FLUOROSILICONE, ACM, PU,IIR , HNBR |
| Color | Black, Brown, Orange-Red, or as pantone card, CUSTOMIZED |
|
Standard Sizes
|
• AS 568 Standard Sizes: • Cross Section:1.78mm/2.62mm/3.53mm/5.33mm/6.99mm • JIS B 2401 Standard Sizes: • P type Cross Section:1.9mm/2.4mm/3.5mm/5.7mm/8.4mm • G type Cross Section:3.1mm/5.7mm • V type Cross Section:4mm/6mm/10mm • S type Cross Section:1.5mm/2mm |
| Hardness | 30-90 Shore A, Normal is 70 Shore A |
| Temperature | -40~150℃, 300℃, CUSTOMIZED |
| Package | CUSTOMIZED |
Different elastomers have different compatibility with various chemical elements and their characteristics.
See the table below for more material knowledge to order the most cost-effective o-rings from us.
| Material | Hardness (Shore A) |
Temperature (ºC) |
Main Color | Advantage | Price Level | Shelf Life (Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 - 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 - 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 - 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 - 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 - 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 - 120 | Black | Versatility Properties | Fair | 5-10 |
| FFKM | 70-90 | -10 - 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 - 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 - 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / polyurethane | 60-90 | -40 - 90 | Natural | High strength and wear resistance | High | About 10 |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
FKM-ROHS CANEC23015740909(SZP23-030677).pdf
FKM-REACH CANEC23015740911(SZP23-030677).pdf
FKM-FDA CANEC23015737705(SZP23-030799).pdf
FKM-ELV CANEC23015740913(SZP23-030677)-Final.pdf
We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
