Product Overview

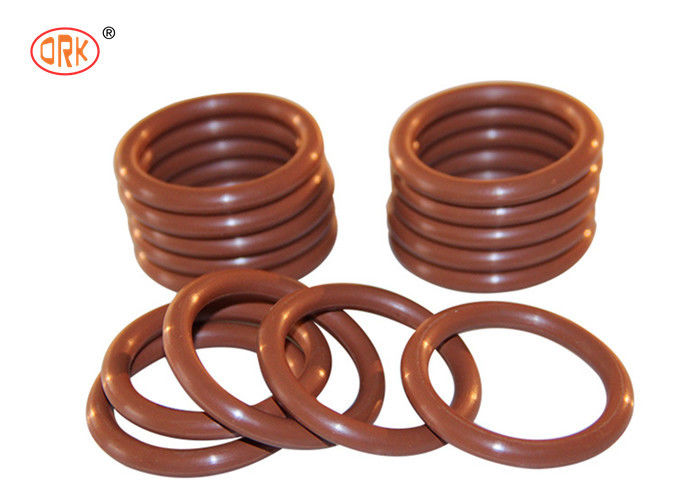

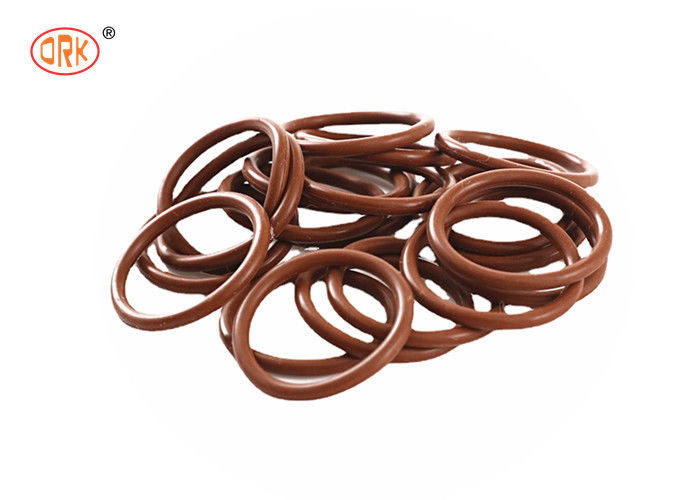

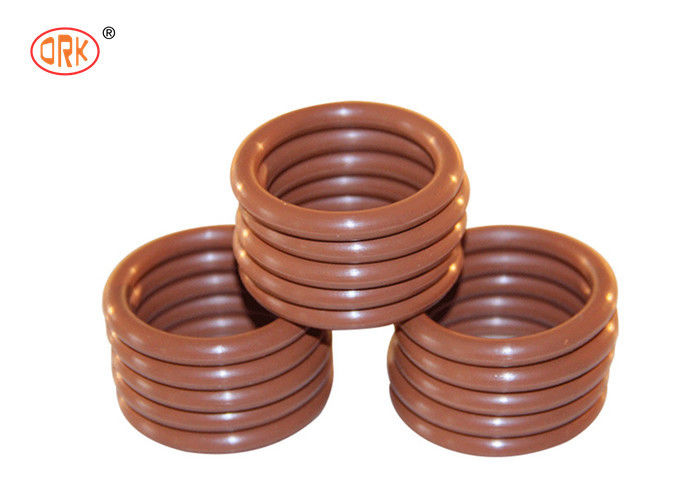

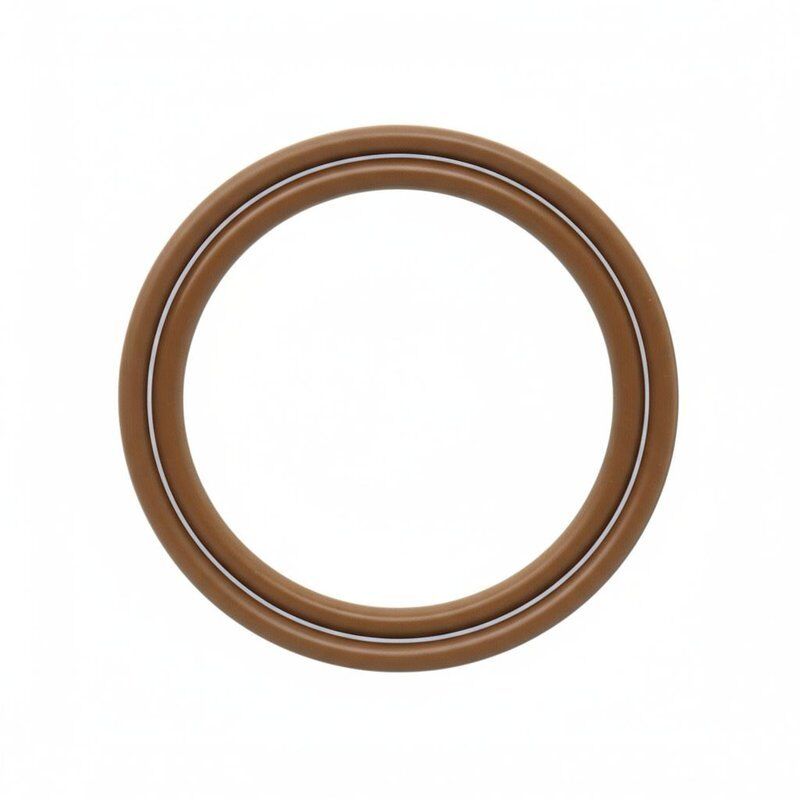

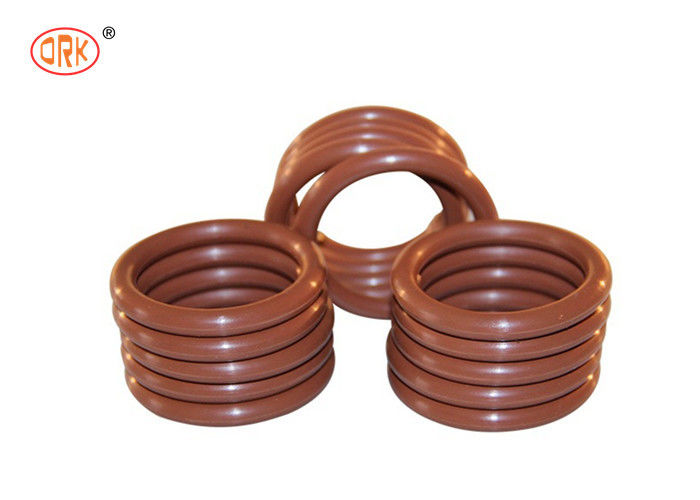

AS568 PG Standard Size FKM FPM EPDM Silicone Rubber O-Ring Seals for Sealing Applications
Type: O Ring
Size: ID X CS, OD=ID + 2XCS
Product Description
An O-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section. The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases. They offer simplicity, convenience, and small installation space requirements. With proper groove design, material selection, and operating conditions within the rubber material's temperature range, the seal can provide long-term effectiveness in both static and dynamic applications.
Size Calculation
O-ring size is determined by inner diameter (ID) and cross-section (CS). Calculation: Outer diameter = Inner diameter + 2 × Cross-section (OD = ID + 2×CS).
Applications
- Electrical Appliances
- Hydraulic Systems
- Automotive Industry
- Furniture Manufacturing
- Machinery Equipment
- Electronics
- Household Products
- Medical Devices
- Water Industry
- Food Industry
Sealing Solutions
- Oil Sealing
- Air Sealing
- Water-proof Applications
- Solvent Resistance
- Heat Resistance
- Dust Prevention
- Shock Absorption
- Skid Resistance
- Decorative Applications
Material Specifications: FKM/FPM Fluorocarbon
| Property |
Details |
| Advantages |
- Excellent High Temperature Resistance
- Excellent Abrasion Resistance
|
| Disadvantages |
- Poor Low Temperature Resistance
- Poor Oxygenated-Solvent Resistance
|
| Temperature Range |
-20℃ to 250℃, -40℃ to 250℃ (special formula) |
| Applications |
- Automotive Industry
- Aerospace Applications
- Electronic Products
|
Fluorocarbon elastomers have grown to major importance in the sealing industry. Due to their wide range of chemical compatibility, temperature range, low compression set, and excellent aging characteristics, fluorocarbon rubber is the most significant single elastomer developed in recent history. Fluorocarbon elastomers are highly fluorinated carbon-based polymers used in applications to resist harsh chemical and ozone attack.
Technical Specifications
- Working temperature range: -26°C to +205°/230°C (-15°F to +400°/440°F)
- Short-term operation at higher temperatures possible
- Special compounds available with improved chemical resistance
Available Materials
We supply various rubber materials including: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM, SBR, FLS, and more.
Material Characteristics Comparison
NBR Rubber Features
Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and vegetable oils. Offers strong resistance to heat aging - often a key advantage over natural rubber.
EPDM Rubber Features
EPDM rubber is a high density rubber primarily used for outdoor applications. It has dynamic and mechanical properties between natural rubber and synthetic rubber. Not recommended for continual contact with petroleum-based products or aromatic hydrocarbons.
HNBR Rubber Features
Hydrogenated Nitrile Butadiene Rubber (HNBR) is a special class of nitrile rubber that has been hydrogenated to increase saturation. Provides greater thermal stability, broader chemical resistance, and greater tensile strength compared to standard NBR.
SBR Rubber Features
Styrene-butadiene rubber (SBR) is a general-purpose synthetic rubber with similar chemical and physical properties to natural rubber, featuring better abrasion resistance, outstanding strength, and good creep resistance.
Neoprene Rubber Features
Neoprene (polychloroprene) is an extremely versatile synthetic rubber with over 75 years of proven performance. Used extensively in automotive under-hood and underbody applications.
Natural Rubber Features
Natural rubber is an ideal polymer for dynamic or static engineering applications. Not recommended for applications involving ozone, oils, or solvents.
PU/Polyurethane Rubber Features
- Good hydraulic oil and gasoline resistance
- Resistant to pure aliphatic hydrocarbons (propane, butane, fuel)
- Resistance to mineral and silicone oils and greases
- Resistant to water, oxygen, ozone and aging
- Excellent tear and abrasion resistance
- Available in multiple types and compounds to meet performance and cost requirements
Certifications
We hold the following certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, IATF, FDA, REACH, ROHS, SGS, and more.
Custom Color Options
We can manufacture O-rings in custom colors according to customer requirements. Please provide Pantone numbers for color matching.
Additional Product Capabilities
We also produce various specialized rubber seals including:
- Automotive Rubber Seals
- Connector Rubber Seals
- Power Tool Rubber Seals
- Valve Rubber Seals
- Pipe Rubber Seals
- Semiconductor Rubber Seals
- Hydraulic Pneumatic Rubber Seals
- Pump Rubber Seals
- Oil and Gas Seals
- Food Grade Rubber Seals
- Medical Rubber Seals
- Chemical Equipment Rubber Seals
Company Overview
Rui Chen Sealing Co., Ltd was established in 2006 and currently employs more than 200 staff. The company operates two branches in Guangdong and Jiangxi provinces: Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd.
Our mission is to provide "best quality, best service" and we are committed to mutual progress and success with our partners.
Quality Standards
- Raw material incoming inspection standard: ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
- Public O-ring dimensional tolerance: GB/T 3452.1-2005
- N-level specification for O-ring appearance quality inspection: GB/T 3452.2-2007
- Hardness measurement model: Micro O-Ring Testing (Type M system)
- Hardness using standard: ASTM D2240 Rubber Standard Test Method (Shore A)
- Sampling inspection specification: GB/T2828.1-20
Manufacturing Process
Our precision rubber seals follow a controlled manufacturing process with integrated Quality Control Gates at multiple stages to ensure every O-ring, gasket, or custom seal meets exact specifications for durability, compression set, and chemical resistance.
Cooperative Partners
Rui Chen has established partnerships with numerous superior customers. We maintain complete systems and excellent productivity to serve your requirements.
International Exhibitions
We actively participate in international exhibitions to discuss sealing technology and find optimal solutions for your applications.
Why Choose Rui Chen?
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction.
Professional Expertise
Rich experience in materials, products, and production with excellent international trade and communication skills.
Best Services
Comprehensive support from quoting, sampling, production, shipping to after-sales service.
Project Experience
Over 10,000 projects delivered to customers worldwide with consistently positive feedback.
Competitive Pricing
ISO management system and intelligent manufacturing enable continuous cost reduction and maximum customer value.
Massive Production Capacity
In-house facilities and strong relationships with rapid materials partners ensure unlimited capacity.
Fast Delivery
Unlimited capacity, experienced engineers, and flexible production systems enable rapid turnaround times.
Customer Satisfaction
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent service to build long-term partnerships.
Frequently Asked Questions
Q: What kinds of materials can you provide?
A: NBR, EPDM, SILICONE, FKM (FPM), NEOPRENE (CR), HNBR, NR, IIR, SBR, ACM, AEM, Fluorosilicone (FVMQ), FFKM, and more.
Q: How to select the raw compound for my application?
A: With years of experience working with various materials, we can help select the optimal material for your needs while considering cost efficiency.
Q: How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight costs can be negotiated.
Q: What is the normal lead time for product orders?
A: Stock items: 3-7 days; Mold production: 15-18 days; Non-stock items: 25-30 days (depending on product specifications).
Q: How to check the quality of the bulk order?
A: We implement comprehensive quality control including incoming inspection, process inspection, 100% final inspection, and pre-production samples as required.
Q: What is your standard packing?
A: Standard packing includes plastic bags for inner packing and carton boxes for outer packing. Custom packaging available upon request.
Q: What's the payment term?
A: We accept T/T (30% deposit and 70% balance) and PayPal.
Alternative Solutions
If this product doesn't meet your exact requirements, our expertise extends far beyond this item. We likely have exactly what you need in our extensive catalog.
