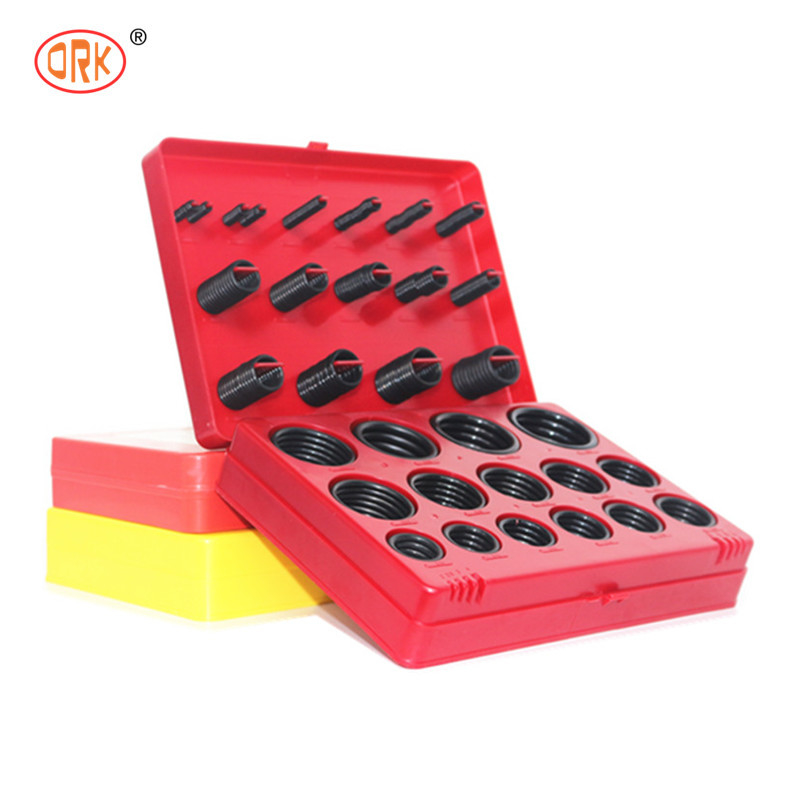

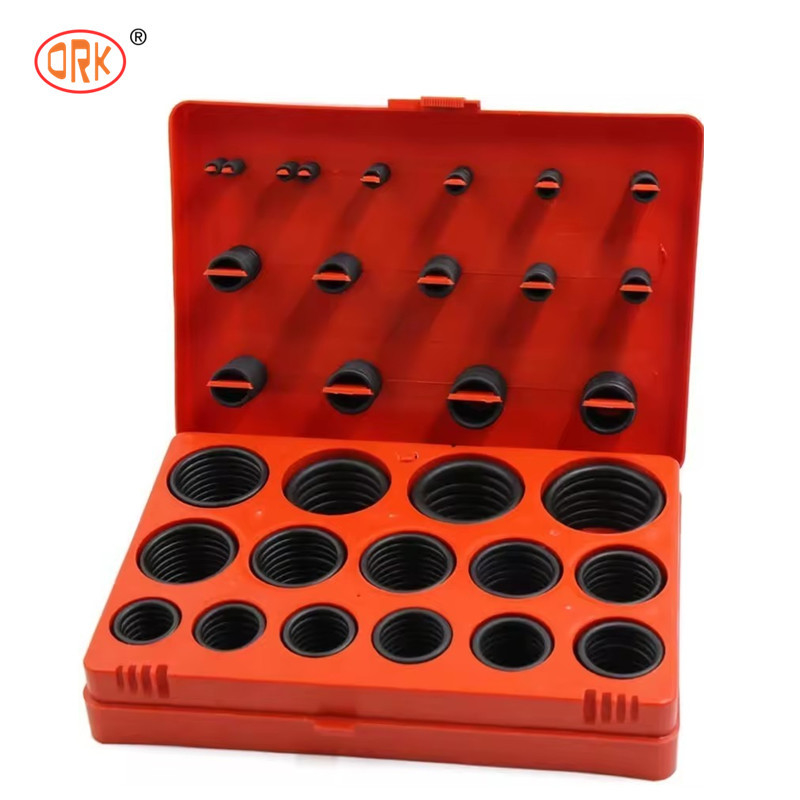

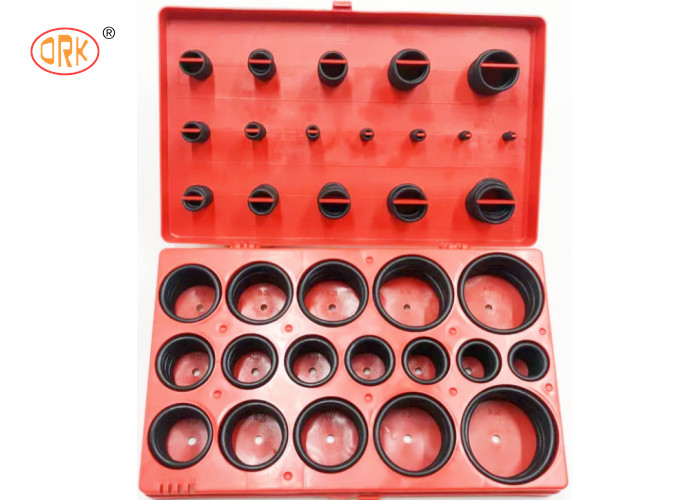

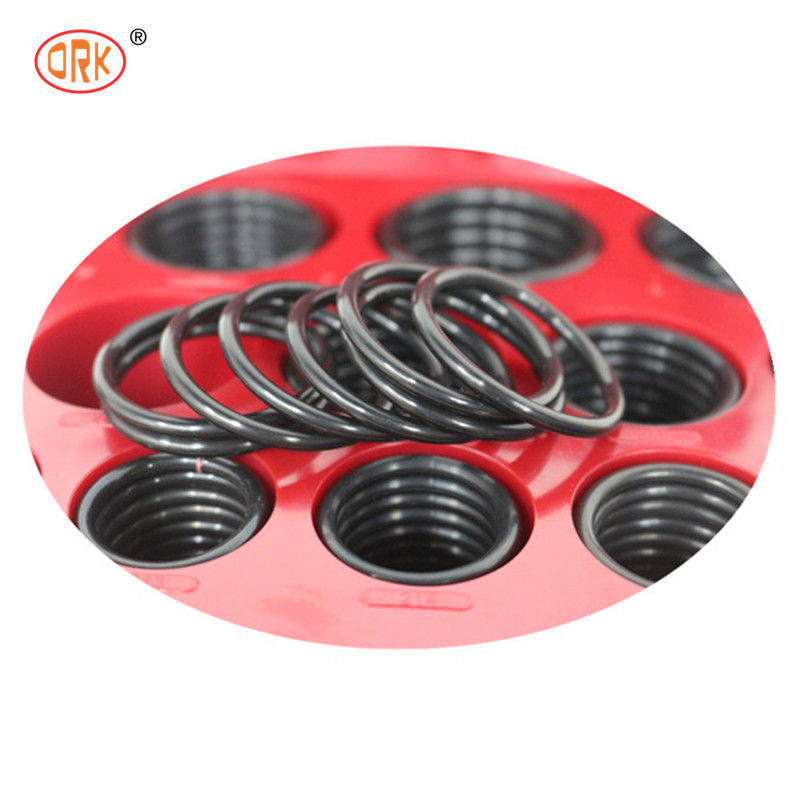

Full Inspection NBR70 Series Excavator O-Ring Kit for Easy Repair and Maintenance
| BOX-H METRIC SIZES O-RING KIT | ||||||||
| O-RING KIT METRIC SIZE | PROFESSIONAL QUALITY | |||||||
| Nitrile Rubber ( NBR ) | 404 Pcs | |||||||
| Part NO. | Actual Size | Quantity | Part NO. | Actual Size | Quantity | |||
| ON Kit | ID/mm | CS/mm | InKit | ON Kit | ID/mm | CS/mm | InKit | |
| R_01 | 3.00 | 2.00 | 18 | R_16 | 20.00 | 3.00 | 12 | |
| R_02 | 4.00 | 2.00 | 18 | R_17 | 22.00 | 3.00 | 12 | |
| R_03 | 5.00 | 2.00 | 18 | R_18 | 24.00 | 3.00 | 12 | |
| R_04 | 6.00 | 2.00 | 18 | R_19 | 25.00 | 3.00 | 12 | |
| R_05 | 7.00 | 2.00 | 17 | R_20 | 27.00 | 3.00 | 12 | |
| R_06 | 8.00 | 2.00 | 17 | R_21 | 28.00 | 3.00 | 12 | |
| R_07 | 10.00 | 2.00 | 17 | R_22 | 30.00 | 3.00 | 12 | |
| R_08 | 10.00 | 2.50 | 14 | R_23 | 32.00 | 3.00 | 12 | |
| R_09 | 11.00 | 2.50 | 14 | R_24 | 33.00 | 3.00 | 12 | |
| R_10 | 12.00 | 2.50 | 14 | R_25 | 35.00 | 3.00 | 12 | |
| R_11 | 14.00 | 2.50 | 14 | R_26 | 36.00 | 3.00 | 12 | |
| R_12 | 16.00 | 2.50 | 14 | R_27 | 38.00 | 3.00 | 12 | |
| R_13 | 17.00 | 2.50 | 14 | R_28 | 38.00 | 4.00 | 9 | |
| R_14 | 19.00 | 2.50 | 14 | R_29 | 42.00 | 4.00 | 9 | |
| R_15 | 19.00 | 3.00 | 12 | R_30 | 45.00 | 4.00 | 9 | |
| Total Quantity: 404 Pcs | ||||||||
| BOX-G AS568 SIZES O-RING KIT | ||||||||
| O-RING KIT AS568 STANDARD | PROFESSIONAL QUALITY | |||||||
| Nitrile Rubber ( NBR ) | 382 Pcs | |||||||
| Part NO. | Actual Size | Quantity | Part NO. | Actual Size | Quantity | |||
| AS 568 | ID/mm | CS/mm | InKit | AS 568 | ID/mm | CS/mm | InKit | |
| A 006 | 2.90 | 1.78 | 20 | A 211 | 20.22 | 3.53 | 10 | |
| A 007 | 3.68 | 1.78 | 20 | A 212 | 21.82 | 3.53 | 10 | |
| A 008 | 4.47 | 1.78 | 20 | A 213 | 23.39 | 3.53 | 10 | |
| A 009 | 5.28 | 1.78 | 20 | A 214 | 24.99 | 3.53 | 10 | |
| A 010 | 6.07 | 1.78 | 20 | A 215 | 26.57 | 3.53 | 10 | |
| A 011 | 7.65 | 1.78 | 20 | A 216 | 28.17 | 3.53 | 10 | |
| A 012 | 9.25 | 1.78 | 20 | A 217 | 29.74 | 3.53 | 10 | |
| A 110 | 9.19 | 2.62 | 13 | A 218 | 31.34 | 3.53 | 10 | |
| A 111 | 10.77 | 2.62 | 13 | A 219 | 32.92 | 3.53 | 10 | |
| A 112 | 12.37 | 2.62 | 13 | A 220 | 34.52 | 3.53 | 10 | |
| A 113 | 13.94 | 2.62 | 13 | A 221 | 36.09 | 3.53 | 10 | |
| A 114 | 15.54 | 2.62 | 13 | A 222 | 37.69 | 3.53 | 10 | |
| A 115 | 17.12 | 2.62 | 13 | A 325 | 37.47 | 5.33 | 7 | |
| A 116 | 18.72 | 2.62 | 13 | A 326 | 40.64 | 5.33 | 7 | |
| A 210 | 18.64 | 3.53 | 10 | A 327 | 43.82 | 5.33 | 7 | |
| Total Quantity: 382 Pcs | ||||||||
NBR material :
|
NBR Rubber Features:
Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and vegetable
oil. Nitrile rubber also offers strong resistance to heat aging - often a key advantage over natural rubber.
Nitrile rubber performs well in carburetor and fuel pump diaphragms, aircraft hoses, seals and gaskets as well
as oil-lined tubing. Due to its versatility, nitrile is used in applications involving not only oil and fuel resistance,
but those applications requiring resistance to heat, abrasion, water, and gas permeability.
Different elastomers have different compatibility with various chemical elements and their characteristics. See
the table below for more material knowledge to order the most cost-effective o-rings from us.
| Material | Hardness (Shore A) |
Temperature (ºC) |
Main Color | Advantage | Price Level | Shelf Life (Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 - 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 - 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 - 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 - 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 - 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 - 120 | Black | Versatility Properties | Fair | 5-10 |
| FFKM | 70-90 | -10 - 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 - 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 - 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / polyurethane | 60-90 | -40 - 90 | Natural | High strength and wear resistance | High | About 10 |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
NBR-ROHS CANEC23015740929(SZP23-030677).pdf
NBR-REACH CANEC23015740931(SZP23-030677).pdf
NBR-PAHS CANEC23015740935(SZP23-030677).pdf
Except Rubber o rings for rubber seals for Automotive seals , we can also produce rubber seals for
Oil & Gas seals , Coal Mining Machinery seal , Electronic Home Appliances & electric seals ,
Chemical equipment seals , Artificial intelligence & New Energy seal , Refrigeration seals , Aerospace seals ,
Hydraulic & Pneumatic seal , Food-grade seals ,Valve & pipe seals , Pump seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
