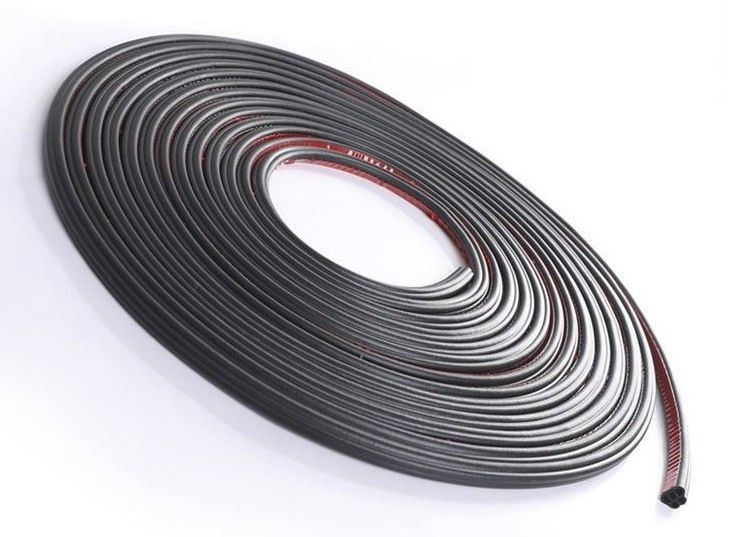

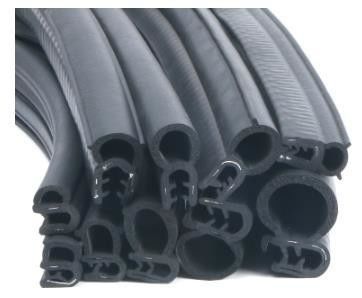

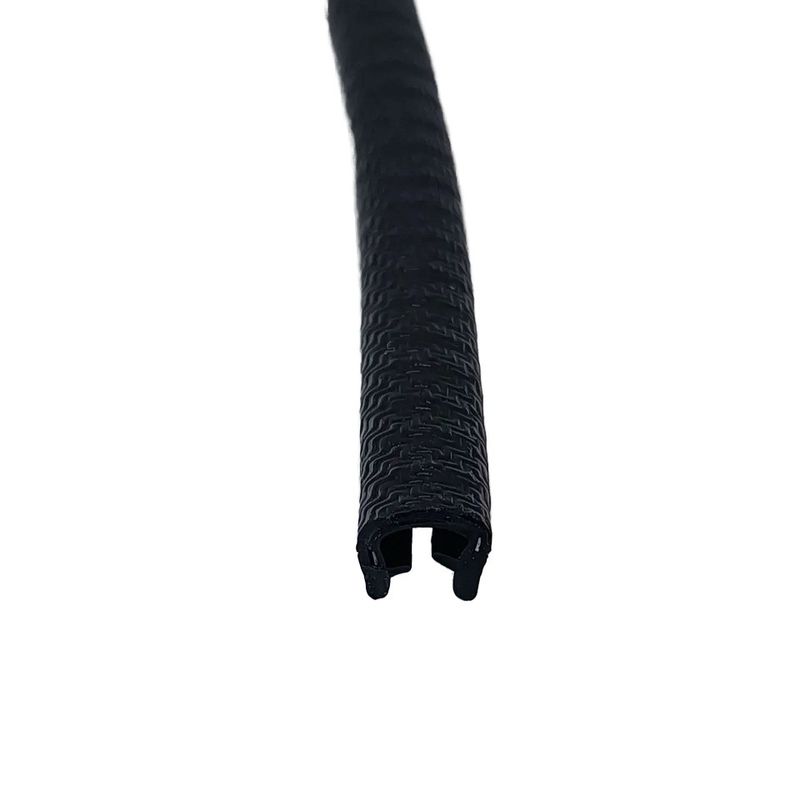

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers

Place of Origin:

Jiangxi, China

Brand Name:

ORK

Certification:

REACH / ROHS / ISO9001 / IATF / SGS / FDA

Model Number:

As per client's drawing

Contact Us
Request A Quote
Product Details
Size:
Standard Size Custom Size, Standard Size Custom Size
Material:
NBR FKM EPDM HNBR
Color:
Black/Green
Feature:
Oil & Pressure Resistance
Pressure:
60 Mpa
Type:
Five Edge Type Ring
Sample:
Freely
Quality:
Superior
Payment & Shipping Terms
Minimum Order Quantity
1000 meters
Price
$0.90/meters >=1000 meters
Packaging Details
PE bags inside , cartons outside , cartons on pallets. Or as your requirements .
Delivery Time
7-10 work days
Payment Terms
T/T , paypal , wechat , Alipay
Supply Ability
100000000000/week
Product Description



Product Name Rubber O-Ring
Materials NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, FPM , PU ,ACM ,SBR
Temperature

NBR(-40~120°C),FFKM(-20~320°C)

Viton(-20~200°C),Silicone (-70~220°C)

EPDM(-50~150°C),PU(-40~90°C)

Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Cerfiticate ISO 9001:2008
Hardness 30-90 shores A
Color Red, Black, White, blue, green, Clear, etc
Size Any size, Customized/standard and nonstandard
Sample time If instock, within 3 days after payment
Delivery time

7-15 days by express after payment

10-20 days by ship

Shipping

Small quantity: UPS/FeDex/DHL express

Large quantity: by Air/Sea

Customized OEM & ODM are welcomed
packing plastic bag&carton box or according to your requirements
Application chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on.





We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM ,SBR , FLS , etc...



What's Each Rubber's Typical Features ?



NBR Rubber Features:

Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and vegetable oil. Nitrile rubber also offers strong resistance to heat aging - often a key advantage over natural rubber.

Nitrile rubber performs well in carburetor and fuel pump diaphragms, aircraft hoses, seals and gaskets as well as oil-lined tubing. Due to its versatility, nitrile is used in applications involving not only oil and fuel resistance, but those applications requiring resistance to heat, abrasion, water, and gas permeability.

FKM Rubber Features:

Viton belongs to the Fluoroelastomers (FKM/FPM) group of rubber compounds. There are many grades and hardness variations to solve most applications with various formulations to meet specific requirements of temperature and chemical resistance. Typical uses include:excellent heat resistance,good mechanical properties,good compression set resistance,resistance to wide range of oils and fuels,resistance to solvents; especially all aliphatic, aromatic and halogenated hydrocarbons and acids.

EPDM Rubber Features:

EPDM rubber is a high density rubber primarily used for outdoor applications. It has dynamic and mechanical properties between natural rubber and synthetic rubber.

Do not use EPDM if continual contact with petroleum based products is required.

Not recommended for usage in food applications or those that are exposed to aromatic hydrocarbons.

HNBR Rubber Features:

Hydrogenated Nitrile Butadiene Rubber (HNBR), also known as Highly SaturatedNitrile (HSN), is special class of nitrile rubber (NBR) that has been hydrogenated to increase saturation of the butadiene segment of the carbon polymer backbone. Subsequent improvements to the material properties, over that of a nitrile rubber (NBR), include greater thermal stability, broader chemical resistance, and greater tensile strength.

HNBR is classified by ASTM as a DH-type polymer. This classification indicates 150ºC service temperature as well as less than 30% swell in IRM 903 oil. HNBR can be formulated to meet application temperatures ranging between -50°C and 165ºC.

SBR Rubber Features:

1.Main materials: Styrene-butadiene rubber (SBR), a general-purpose synthetic rubber,produced from a copolymer of styrene and butadiene. Exceeding all other synthetic rubbers in consumption, SBR is used in great quantities in automobile and truck tires, generally as an abrasion-resistant replacement for natural rubber (produced from polyisoprene).

2.Available place: They are widely used in automobile, electrical appliances, building vibration isolation and other industry. For example, air blower, water pump, instrument, measuring of ships and so on.

3.Main performance: SBR has similar chemical and physical properties to natural rubber, with generally better abrasion resistance,outstanding strength,good creep and stress relaxation resistance and low cost,etc. It is not recommended to use SBR in applications that involve ozone, strong acids, oils, greases, fats and most hydrocarbons.

Neoprene Rubber Features:

Neoprene Rubber, also known as neoprene polychloroprene, is an extremely versatile synthetic rubber with more than 75 years of proven performance.

In the automotive world, neoprene is used for many under-the-hood and underbody parts that require a reasonably priced, mid-performance polymer with a good all-around balance of performance properties.

Natural Rubber Features:

Natural rubber was originally derived from latex found in the sap of rubber trees. The purified form of natural rubber can also be produced synthetically. Natural rubber is an ideal polymer for dynamic or static engineering applications.

Caution: Natural rubber is not recommended for applications where the rubber part will be exposed to ozone, oils, or solvents.

PU/Polyurethane Rubber Features:

Polyurethane is an organic polymer. Polyurethanes are formed by reacting a polyol (an alcohol with more than two reactive hydroxyl groups per molecule) with a diisocyanate or a polymeric isocyanate in the presence of suitable catalysts and additives. Polyurethane is a widely used compound due to its superior strength, tear and abrasion resistance. Polyurethane also provides excellent permeation resistance.

Features:

  • Good hydraulic oil and gasoline resistance
  • Resistant to pure aliphatic hydrocarbons (propane, butane, fuel)
  • Resistance to mineral and silicone oils and greases
  • Resistant to water, oxygen, ozone and aging
  • Excellent tear and abrasion resistance
  • Available in multiple types and compounds to meet performance and cost requirements


For color , we can make as customers' requirements .Below table is the colorful o rings

we made.If you need colored o rings , you can give me pantone number .

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 0





We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve

Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump

Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment

Rubber Seals ...etc.

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 1

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 2

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 3

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 4

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 5

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 6



Our Factory



1. Since 2006, focus on rubber seals, especially for auto parts


2. Certificates: ISO9001, IATF16949, ISO14001, ISO45001,ISO 13485


3. Two factories, more than 18000㎡,clean room 600㎡, with 300 workers.



4. Molds > 10000 sets, especially o rings, about 5000 sets.



5.O-ring series covers American standard (AS568), Japanese standard (JIS), national

standard(GB), and produces a large number of customized non-standard parts.



6. Material: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR .The rubber materials

used meet the requirements of ROHS2.0 and REACH235.



7. Material Certificates: FDA, ROHS, REACH, UL157, CP65 WRC, EN549,EN45545.



8. Products are widely used in automotive parts, electronic connectors, valves, pneumatics,
power tools, new energy, medical equipment, electronic products and other fields.



9. company has introduced HRP, ERP and other systems since its inception.

10. The company's labor cost, raw material procurement, production process and
product quality were comprehensively and scientifically controlled.

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 7Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 8Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 9



Our strength:

PROFESSIONAL OEM & ODM 30+ YEARS OF RUBBER SEALING MANUFACTURER

☆ PROFESSIONAL OEM & ODM 30+ YEARS OF RUBBER SEALING MANUFACTURER
☆ FULL RANGE OF MOLDS OVER 10,000+
☆ PROFESSIONAL TEAM PROVIDE EFFICIENT TRADING SERVICE
☆ STRICT QUALITY CONTROL--QUALITY GUARANTEE
☆ OWNED A TESTING LABORATORY WITH SOPHISTICATED TEST EQUIPMENT
☆ ADVANCED EQUIPMENTS: 50+ CURING MACHINE 8 CCD AUTOMATIC INSPECTION MACHINE 8 ALL-IN-ONE MACHINE





Progress
Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 10



Cooperative partner



Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity

to serve for you

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 11



International exhibition



Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 12

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 13

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 14

Oil Pressure Resistance Strip Seal Van Truck Container Door Seal Gasket for Freezer Trailers 15

Why RUICHEN?

Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always

satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the

small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.

High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,

which has become one of our core competencies.

Profession
We have rich experience in materials, products, and production and excellent international trade and language

communication skills.

Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service

so that you can rest assured completely.

10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless

positive comments.

Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing

to reduce our costs continuously.

Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid

materials partners, our capacity is not limited.

Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and

production parts in a short period.

1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all

our new customers to become long-term customers.

FAQ

Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),

FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your

needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.



Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product

situation.



Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the

production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according

to customer needs before the mass production of pre-production samples.



Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.



Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, P
