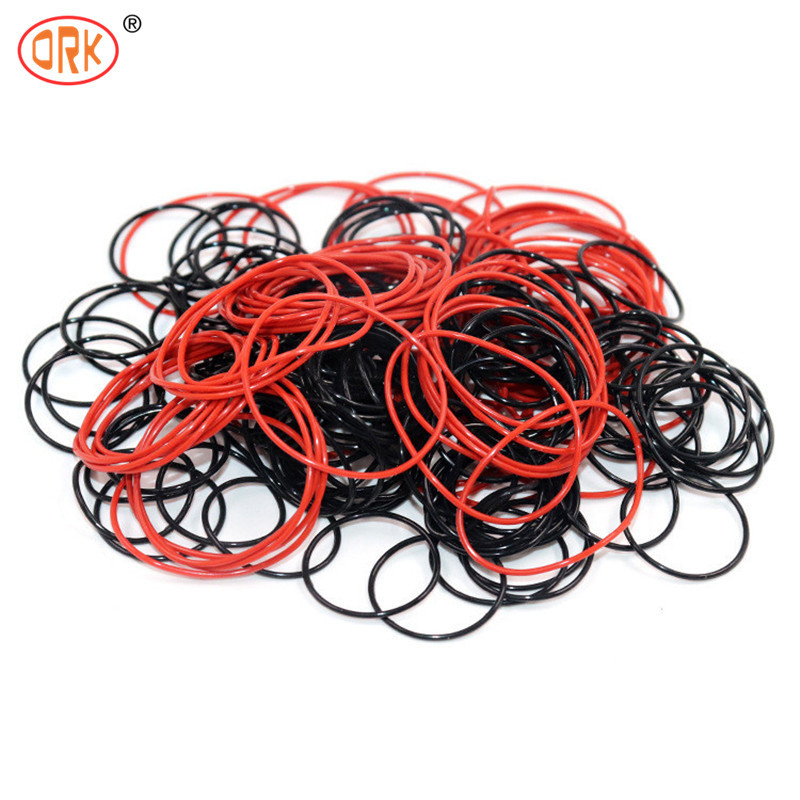

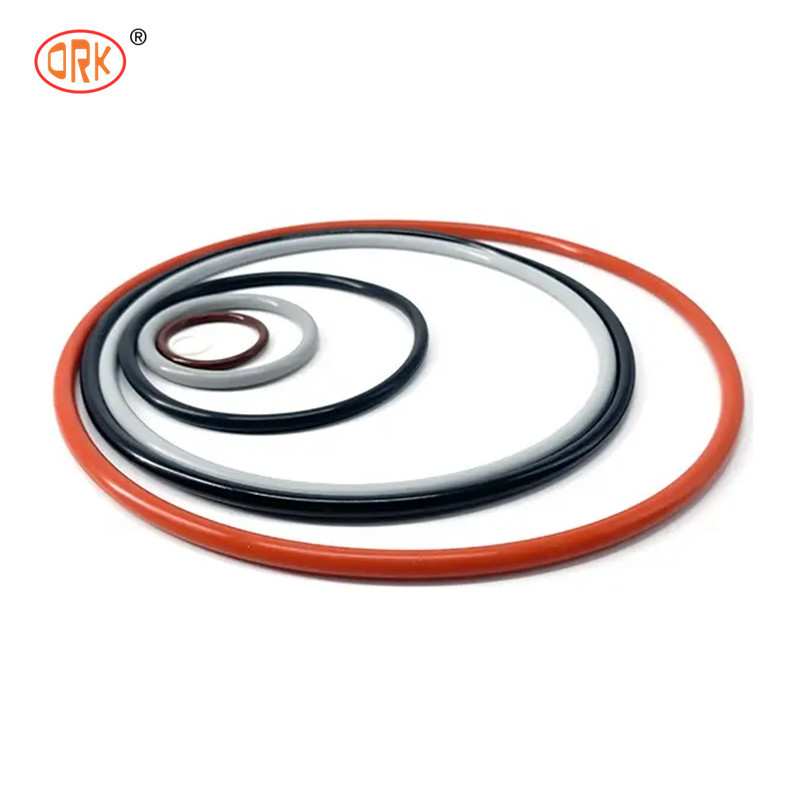

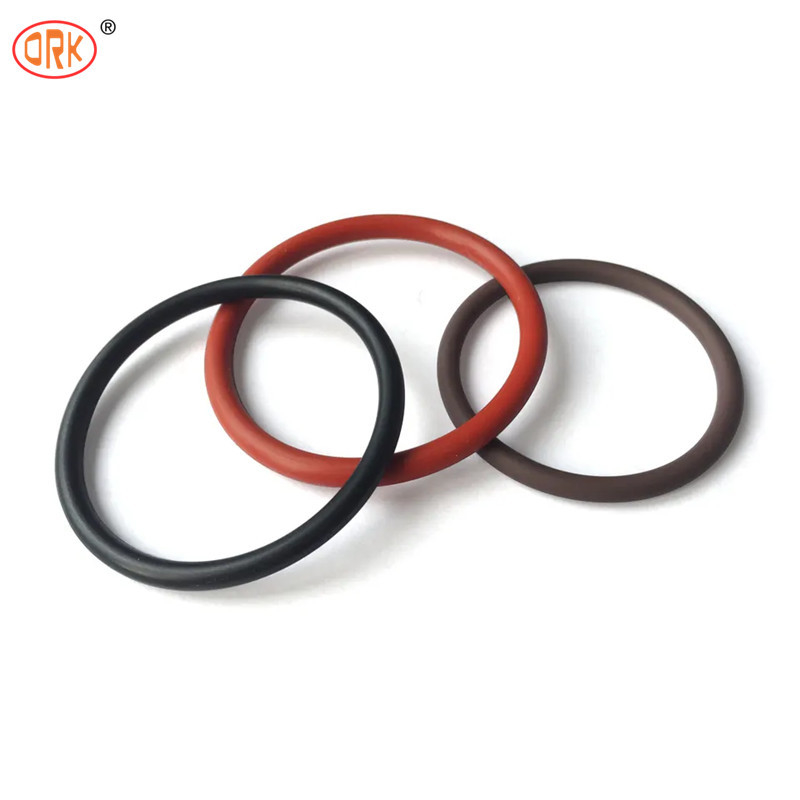

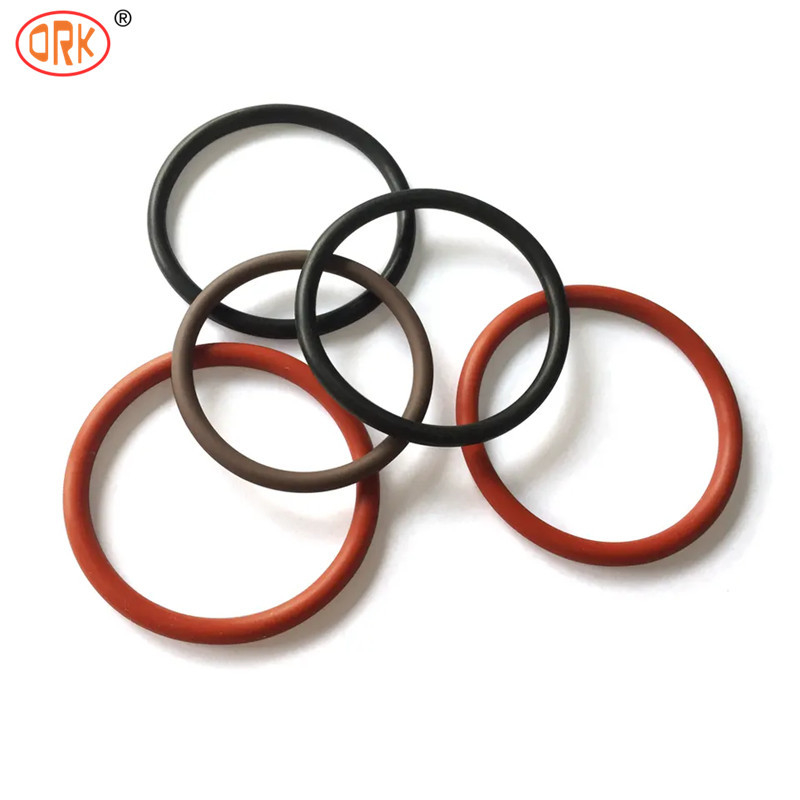

High Quantity Customized AS568 PG Standard Metric Size Waterproof Silicone Medical Rubber O-Ring Seal

Type: O Ring
Size: ID X CS, OD=ID + 2XCS

An o-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section (from which the "O" in
its name is derived). The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases. They simplicity,
convenience, and small installation space. As long as the groove design and material selection are correct, and the operating
conditions are within the temperature range of the rubber material, the seal can have a long-term sealing effect in the static
or dynamic seal.
The size of o-ring is determined by the inner diameter ID and the wire diameter CS. O-ring size calculation:
outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x CS).
O-Ring Advantages:
1. O-Rings offer an efficient and economical sealing element for a wide range of static or dynamic applications.
2. O-Ring sizes are defined by the inner diameter-ID and the cross section-CS, our o-ring Inner Diameter can be from 0.5mm
to 1500mm.
3. Standard sizes such as AS568(PARKER sizes), JIS(P TYPE, G TYPE, S TYPE, V TYPE, F TYPE sizes), BS1516 sizes Metric sizes
as well as non-standard sizes are all avaiblabe.
4. We have more than 2000 o-ring mould toolings, so you could get any size here without set-up or tooling charge. Huge inventory
of o-rings can meet your urgent requiremnets.
5. A very wide range of elastomer material can be selected, main material: NBR(BUNA-N, Nitrile), FKM(FKM), Silicone(VMQ), HNBR,
FFKM, EPDM, PU(Polyurethane, urethane), Fluorosilicone(FVMQ), Neoprene(CR) and so on. Hardness of material can be from 40
ShoreA(Durometer) to 90 ShoreA(Durometer)
O-Ring Technical requirements:
Appearance meets GB/T3452.2-2007 Material meets HG/T2579-2008 Size meets GB/T3452.1-2005
In addition, all our products are ROHS and REACH Compliant (we mainly export products to USA and Europe market).
O-Ring Features:
1. Good sealing solution, long service life.
2. Easy installation reduces risk.
3. Working in various medium based on different elastomer material.
Product Name |
AS568 PG Standard Metric Size Waterproof Silicone Medical Rubber O-Ring Seal |
Materials |
NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, FPM , PU ,ACM ,SBR |
Temperature |
NBR(-40~120°C),FFKM(-20~320°C)
Viton(-20~200°C),Silicone (-70~220°C)
EPDM(-50~150°C),PU(-40~90°C)
|
Feature |
Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
Cerfiticate |
ISO 9001:2008 |
Hardness |
30-90 shores A |
Color |
Red, Black, White, blue, green, Clear, etc |
Size |
Any size, Customized/standard and nonstandard |
Sample time |
If instock, within 3 days after payment |
Delivery time |
7-15 days by express after payment
10-20 days by ship
|
Shipping |
Small quantity: UPS/FeDex/DHL express
Large quantity: by Air/Sea
|
Customized |
OEM & ODM are welcomed |
packing |
plastic bag&carton box or according to your requirements |
Application |
chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on. |
Silicone Rubber (Q, MQ, VMQ, PVMQ)
Material |
SIL(Silicone Rubber) |
Advantage |
1,Excellent Rebound Resistance |
2,Excellent Oxygen and Ozone Resistance |
3,Excellent Weathering and Heat Resistance |
4,Excellent Heat and Low Temperature Resistance |
5,Good heat insulation and heat dissipation. |
6,Good electrical insulation |
Disadvantage |
1,Poor Aliphatic-solvent Resistance |
2,Poor Alkaline Resistance |
Temperature |
-40℃-220℃, -100℃-250℃(special formula) |
Application |
1,the household appliances industry seal or rubber parts, such as electric kettle, electric irons, microwave oven rubber parts. |
2,The electronics industry seal or rubber parts, such as mobile phone keys, shock pad DVD, cable joint seal etc. |
3,Contact with the human body on various types of products on the seal, such as water bottles, water dispensers |
*Service Temperature
For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in extreme
temperature up to 300 C and down to -100 C.
*Application
Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive
and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that
need FDA approval for food handling equipment and appliances.
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
IATF 16949 2016.pdf
ISO 9001 2015.pdf
ISO45001.pdf
ISO 14001.pdf
SIL-ROHS CANEC23015740921(SZP23-030677).pdf
SIL-REACH CANEC23015740923(SZP23-030677).pdf
SIL-FDA CANEC23015737709(SZP23-030799).pdf
SIL-ELV CANEC23015740925(SZP23-030677)-Final.pdf
Detasheet-Silicone70 Bright Red FDA(S7008F).pdf

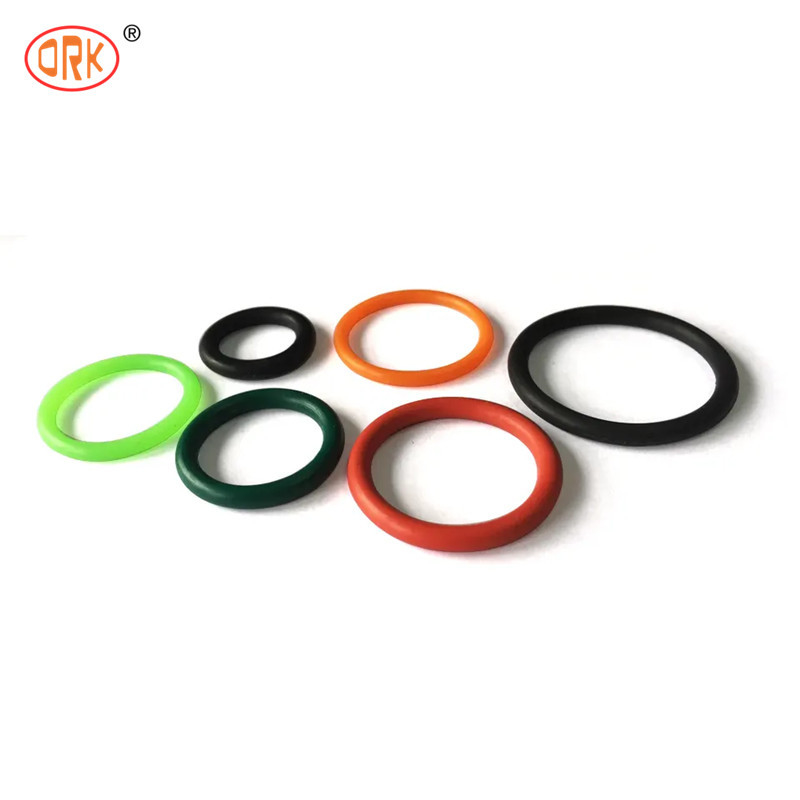

For color , we can make as customers' requirements .Below table is the colorful o rings
we made.If you need colored o rings , you can give me pantone number .

We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.






Our Factory
1. Since 2006, focus on rubber seals, especially for auto parts
2. Certificates: ISO9001, IATF16949, ISO14001, ISO45001,ISO 13485
3. Two factories, more than 18000㎡,clean room 600㎡, with 300 workers.
4. Molds > 10000 sets, especially o rings, about 5000 sets.
5.O-ring series covers American standard (AS568), Japanese standard (JIS), national
standard(GB), and produces a large number of customized non-standard parts.
6. Material: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR .The rubber materials
used meet the requirements of ROHS2.0 and REACH235.
7. Material Certificates: FDA, ROHS, REACH, UL157, CP65 WRC, EN549,EN45545.
8. Products are widely used in automotive parts, electronic connectors, valves, pneumatics,
power tools, new energy, medical equipment, electronic products and other fields.
9. company has introduced HRP, ERP and other systems since its inception.
10. The company's labor cost, raw material procurement, production process and
product quality were comprehensively and scientifically controlled.
