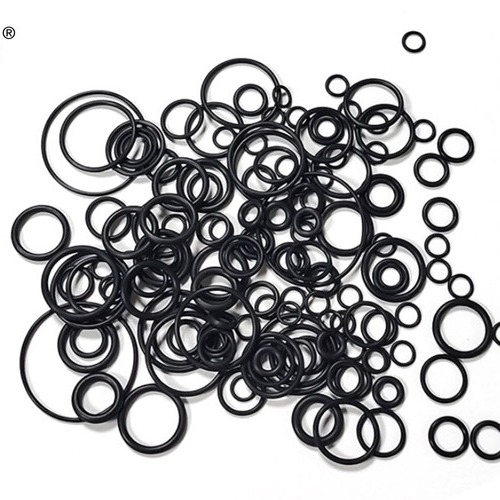

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs

Place of Origin:

Jiangxi, China

Brand Name:

ORK

Certification:

REACH / ROHS / ISO9001 / IATF / SGS / FDA

Model Number:

AS568 & PG Standard O-Rings

Contact Us
Request A Quote
Product Details
Color:
Black
Material:
Medical Grade Rubber
OEM:
Accpetable
Brand:
ORK
Non-Toxic:
Yes
Chemical Resistance:
Excellent
Hardness:
30-90 Shore A
Medical Grade:
Yes
Temperature Range:
-40°C To 200°C
Non-Allergenic:
Yes
Tensile Strength:
10-20 MPa
Fda Compliant:
Yes
Elongation:
300-500%
Customizable:
Yes
Advantage:
Excellent Ozone Resistance
Payment & Shipping Terms
Minimum Order Quantity
1000 pieces
Price
$0.07/pieces 1000-4999 pieces
Packaging Details
PE bags inside , cartons outside , cartons on pallets. Or as your requirements .
Delivery Time
7-10 work days
Payment Terms
T/T , paypal , wechat , Alipay
Supply Ability
100000000000/week
Product Description

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs

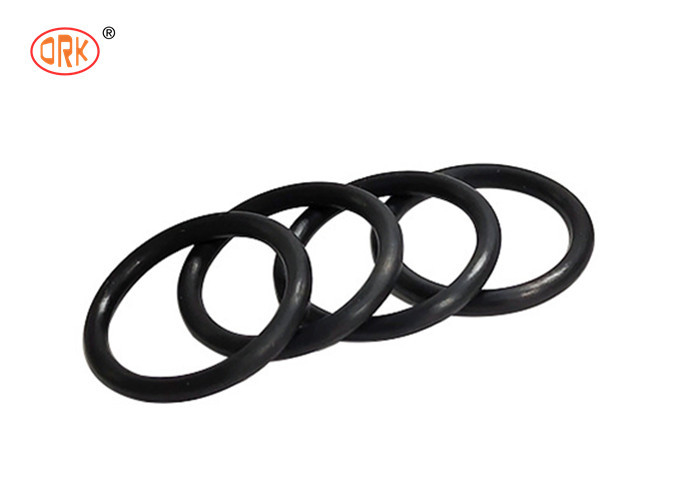

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 0

Type: O Ring

Size: ID X CS, OD=ID + 2XCS

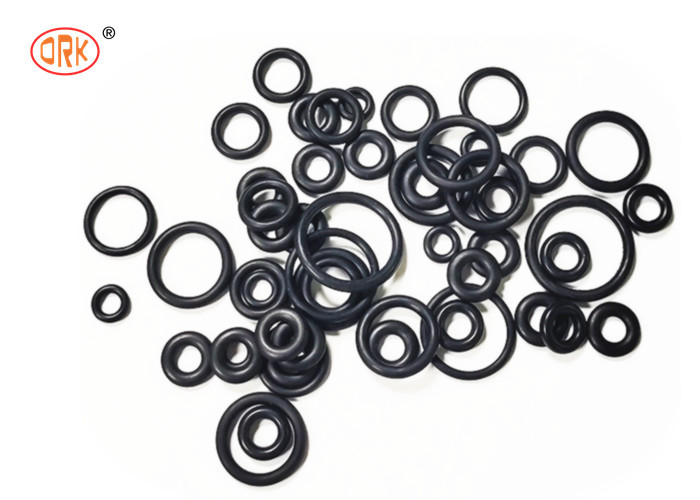

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 1

An o-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section (from
which the "O" in its name is derived). The purpose of using O-ring seals is to prevent leakage and loss of liquids
or gases. They simplicity,convenience, and small installation space. As long as the groove design and material
selection are correct, and the operating conditions are within the temperature range of the rubber material, the
seal can have a long-term sealing effect in the static or dynamic seal.
The size of o-ring is determined by the inner diameter ID and the wire diameter CS. O-ring size calculation:
outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x CS).



Product name O-RING
Material NR, NBR, EPDM, SBR, VITON, CR, SILICONE, FLUOROSILICONE, ACM, CSM, ECO, HNBR
Color Black, Brown, Orange-Red, or as pantone card, CUSTOMIZED

Standard Sizes

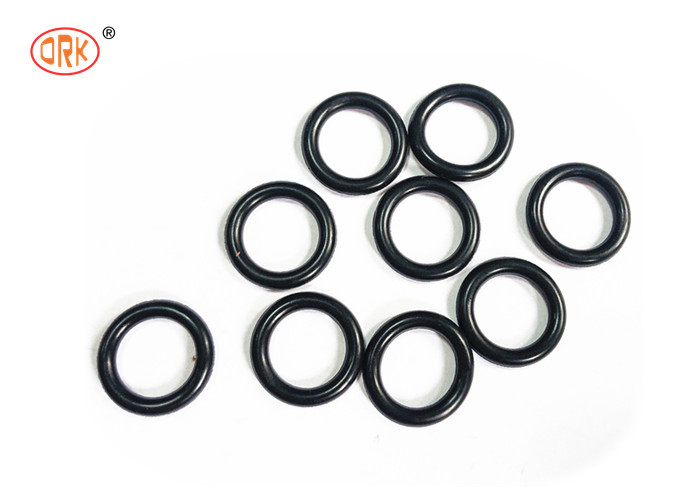

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 2

• AS 568 Standard Sizes:

• Cross Section:1.78mm/2.62mm/3.53mm/5.33mm/6.99mm

• JIS B 2401 Standard Sizes:

• P type Cross Section:1.9mm/2.4mm/3.5mm/5.7mm/8.4mm

• G type Cross Section:3.1mm/5.7mm

• V type Cross Section:4mm/6mm/10mm

• S type Cross Section:1.5mm/2mm

Hardness 30-90 Shore A, Normal is 70 Shore A
Temperature -40~150℃, 300℃, CUSTOMIZED
Package CUSTOMIZED



FKM, FKM(Fluorocarbon)

Material FKM/FPM
Advantage 1,Excellent High Temperature Resistance
2. Excellent Abrasion-Resistance
3,Excellent Oil Resistance
4.Excellent Weathering Resistance
5.Excellent Ozone Resistance
6.Good Water Resistance
Disadvantage 1.Poor Low Temperature Resistance
2.Poor Oxygenated-Solvent Resistance
Temperature -20℃~250℃ , -40℃~250℃(special formula)
Application 1.For Auto
2.For Aerospace
3.For Electronic Products



*Service Temperature
For general type FKM the service temperature is better limited to approximately from -26 C to 232 C in static

applications, though the service temperature can arrive to 275 C at short time In dynamic applications, it is

suitable between -15 C and 200 C.

*Application
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is

usually applied in automotive, chemical processing, aerospace and many other industries.


For color , we can make as customers' requirements .Below table is the colorful o rings

we made.If you need colored o rings , you can give me pantone number .

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 3





We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve

Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump

Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment

Rubber Seals ...etc.

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 4

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 5

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 6

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 7

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 8

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 9

Our Factory



Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has

two branches in Guangdong

and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..

In recent years, the company has been supported by ShangRao municipal government and fully enjoy

all the preferential policies

for economic development zone. We will always take "best quality, best service" as our mission, and make

progress together with you, harmony and mutual win!

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 10Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 11Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 12



Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the

following general standards:

1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20



Progress
Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 13



Cooperative partner



Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity

to serve for you

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 14



Our Advantage:



We provide service of rubber manufacture technology consultation and product R&D (OEM&ODM)

1. cheap mold fee.

2. rubber molding for kind of size/shape, possible to make.

3. custom personalise logo accept

4. over 20000 kind of Custom Molded Rubber establishment and the consummation.

5. various materials:Silicone, EPDM, NBR, FKM(Viton), HNBR, NR, Neoprene(CR), SBR, PU, ACM etc

6. different hardness: 30 to 90 Shore A

7. various colors: translucent, black, white, blue, green, red, etc.

8. Boss of MS wendy, with over 30 years experienced rubber and mold manufactured.



International exhibition



Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 15

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 16

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 17

Durable Black Excellent Ozone Resistance FKM Aflas Medical Rubber O-Ring Seals for Sealing Needs 18

Why RUICHEN?

Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always

satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the

small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.

High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,

which has become one of our core competencies.

Profession
We have rich experience in materials, products, and production and excellent international trade and language

communication skills.

Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service

so that you can rest assured completely.

10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless

positive comments.

Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing

to reduce our costs continuously.

Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid

materials partners, our capacity is not limited.

Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and

production parts in a short period.

1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all

our new customers to become long-term customers.

FAQ

Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),

FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your

needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.



Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product

situation.



Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the

production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according

to customer needs before the mass production of pre-production samples.



Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.



Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance ,Paypal is also ok
